IS/ISR單級單吸離心泵結構圖及結構說明
時間：2014-1-4 來源：揚子江泵業 瀏覽數：1839
IS/ISR單級單吸離心泵概述：
該系列產品包括了ISO2858規定的全部40個型號，通過切割葉輪和變速可獲得267種性能，能適應各行各業的供水需要。嚴格按照ISO2858，意味著合理的特性曲線。IS系列單級泵與其它單位生產的IS單級泵區別是工作壓力1.6MPa，泵體泵蓋靜壓力試驗為2.4MPa。
本系列泵是單級單吸懸臂式離心泵，供汲送清水及物理化學性質類似于水不含固體顆粒的液體之用。IS型泵介質溫度適用于80℃以下；ISR型泵適用于輸送130℃以下熱水；ISY型泵用于輸送汽油，柴油等輕油
IS/ISR單級單吸離心泵用途：
IS/ISR單級單吸離心泵適用于工業和民用建筑業，如冶金、電站、紡織、化工、印染、陶瓷、橡膠、采暖、余熱利用、空調等。
IS/ISR單級單吸離心泵產品特點：
1、IS/ISR型臥式單級單吸清水離心泵根據國際標準ISO2858所規定的性能和尺寸設計的，主要由泵體、泵蓋、葉輪、軸、密封環、軸套及懸架軸承不見等組成。
2、IS/ISR型臥式單級單吸清水離心泵的泵體和泵蓋部分，是從葉輪背面處剖分的，即通常所說的后開門結構形式。其優點是檢修方便，檢修時不動泵體，吸入管路，排出管路和電動機，只需拆下加長聯軸器的中間聯接件，即可退出轉子部分進行檢修。
3、泵的殼體(即泵體和泵蓋)構成泵的工作室。葉輪、軸和滾動軸承等為泵的轉子。懸架軸承部件支撐著泵的轉子部分，滾動軸承受泵的徑向力和軸向力。
4、為了平衡泵的軸向力，大多數泵的葉輪前、后均設有密封環，并在葉輪后蓋板上設有平衡孔，由于有些泵軸向力不大，葉輪背面未設密封環和平衡孔。
5、泵的軸向密封環是由填料壓蓋，填料環和填料等組成，以防止進氣或大量漏水。泵的葉輪如有平衡，則裝有軟填料的空腔與葉輪吸入口相通，如葉輪入口處液體處于真空狀態，則很容易沿著軸套表面進氣，故在填料腔內裝有填料環通過泵蓋上的小孔，將泵室內壓力水引至填料環進行密封。泵的葉輪如沒有平衡孔，由于葉輪背面液體壓力大于大氣壓，因而不存在漏氣問題，故可不裝填料環。
6、為避免軸磨損，在軸通過填料腔的部位裝有軸套保護。軸套與軸之間準有O型密封圈，以防止沿著配合表面進氣或漏水。
7、泵的傳動方式是通過加長彈性聯軸器與電動機聯接的，泵的旋轉方向，從驅動端看，為順時針方向旋轉。

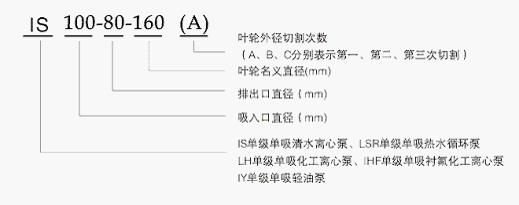

IS/ISR單級單吸離心泵型號意義：

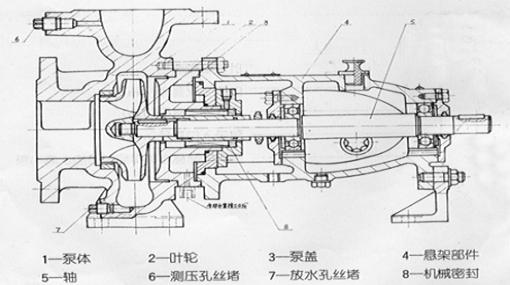

IS/ISR單級單吸離心泵結構圖及結構說明：
ISR系列單級單吸熱水離心泵的主要零件有泵體、葉輪、泵蓋、懸架部件，機械密封部件、軸等。該系列泵為后開門結構，其優點是轉子部件檢修或更換無須拆卸管道，轉子部件由懸架支撐哲（請參考ISR泵結構圖）。泵軸向力的平衡，軸向力較大的泵，葉輪設有平衡孔，其余軸向力由軸承承受。軸封形式采用不平衡單端面機械密封，軸封室外設有水冷卻套，可以通過泵側面1/4管接口接通外來冷水，對軸封進行冷卻。傳動方式，泵的傳動是通過聯軸器與電機直聯。從傳動方向看，泵為順時針旋轉。

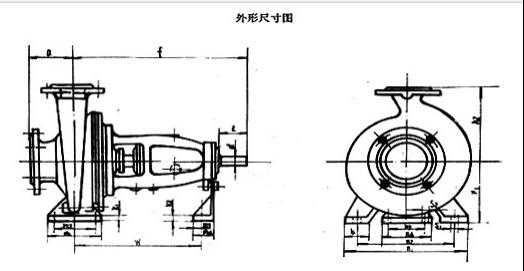

IS/ISR單級單吸離心泵外形尺寸圖：
IS/ISR單級單吸離心泵基本參數：
|
